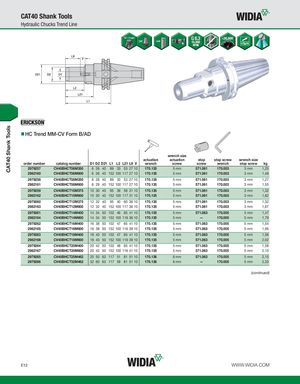

CAT40 Shank Tools CAT40 Shank Tools Hydraulic Chucks Trend Line HC Trend MM-CV Form B/AD wrench size actuation actuation stop stop screw wrench size order number catalog number D1 D2 D21 L1 L2 L21 L9 V wrench screw screw wrench stop screw kg 2979257 CV40BHCT06M350 6 26 40 89 33 53 27 10 170.135 5 mm 571.061 170.003 3 mm 1,25 2982160 CV40BHCT06M600 6 26 40 152 100 117 27 10 170.135 5 mm 571.061 170.003 3 mm 1,49 2979258 CV40BHCT08M350 8 28 40 89 33 53 27 10 170.135 5 mm 571.061 170.003 3 mm 1,27 2982161 CV40BHCT08M600 8 28 40 152 100 117 27 10 170.135 5 mm 571.061 170.003 3 mm 1,55 2979259 CV40BHCT10M375 10 30 40 95 39 58 31 10 170.135 5 mm 571.061 170.003 3 mm 1,32 2982162 CV40BHCT10M600 10 30 40 152 100 117 31 10 170.135 5 mm 571.061 170.003 3 mm 1,62 2979260 CV40BHCT12M375 12 32 40 95 40 60 36 10 170.135 5 mm 571.061 170.003 3 mm 1,32 2982163 CV40BHCT12M600 12 32 40 152 100 117 36 10 170.135 5 mm 571.061 170.003 3 mm 1,67 2979261 CV40BHCT14M400 14 34 50 102 46 65 41 10 170.135 5 mm 571.063 170.005 5 mm 1,47 2982164 CV40BHCT14M600 14 34 50 152 100 116 36 10 170.135 5 mm — 170.005 5 mm 1,79 2979262 CV40BHCT16M400 16 38 50 102 47 65 41 10 170.135 5 mm 571.063 170.005 5 mm 1,54 2982165 CV40BHCT16M600 16 38 50 152 100 116 39 10 170.135 5 mm 571.063 170.005 5 mm 1,95 2979263 CV40BHCT18M400 18 40 50 102 47 65 41 10 170.135 5 mm 571.063 170.005 5 mm 1,56 2982166 CV40BHCT18M600 18 40 50 152 100 116 39 10 170.135 5 mm 571.063 170.005 5 mm 2,02 2979264 CV40BHCT20M400 20 42 50 102 48 65 41 10 170.135 5 mm 571.063 170.005 5 mm 1,58 2982167 CV40BHCT20M600 20 42 50 152 100 116 41 10 170.135 5 mm 571.063 170.005 5 mm 2,10 2979265 CV40BHCT25M462 25 50 63 117 51 81 51 10 170.136 6 mm 571.063 170.005 5 mm 2,15 2979266 CV40BHCT32M462 32 60 63 117 59 81 51 10 170.136 6 mm — 170.005 5 mm 2,33 (continued) E12 WWW.WIDIA.COM
