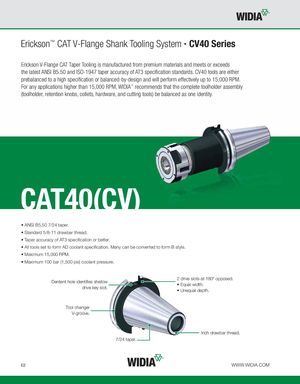

Erickson™ CAT V-Flange Shank Tooling System • CV40 Series Erickson V-Flange CAT Taper Tooling is manufactured from premium materials and meets or exceeds the latest ANSI B5.50 and ISO-1947 taper accuracy of AT3 specification standards. CV40 tools are either prebalanced to a high specification or balanced-by-design and will perform effectively up to 15,000 RPM. For any applications higher than 15,000 RPM, WIDIA™ recommends that the complete toolholder assembly (toolholder, retention knobs, collets, hardware, and cutting tools) be balanced as one identity. CAT40(CV) • ANSI B5.50 7/24 taper. • Standard 5/8-11 drawbar thread. • Taper accuracy of AT3 specification or better. • All tools set to form AD coolant specification. Many can be converted to form B style. • Maximum 15,000 RPM. • Maximum 100 bar (1,500 psi) coolant pressure. 2 drive slots at 180º opposed. Dentent hole identifies shallow • Equal width. drive key slot. • Unequal depth. Tool changer V-groove. Inch drawbar thread. 7/24 taper. E2 WWW.WIDIA.COM
