(SMC BT Form B/AD continued)

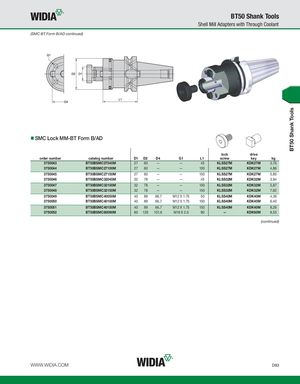

SMC Lock MM-BT Form B/AD
| order number | catalog number | D1 | D2 | D4 | G1 | L1 | lock screw | drive key | kg |
| 3750043 | BT50BSMC27045M | 27 | 60 | — | — | 45 | KLSS27M | KDK27M | 3,76 |
| 3750044 | BT50BSMC27100M | 27 | 60 | — | — | 100 | KLSS27M | KDK27M | 4,86 |
| 3750045 | BT50BSMC27150M | 27 | 60 | — | — | 150 | KLSS27M | KDK27M | 5,85 |
| 3750046 | BT50BSMC32045M | 32 | 78 | — | — | 45 | KLSS32M | KDK32M | 3,94 |
| 3750047 | BT50BSMC32100M | 32 | 78 | — | — | 100 | KLSS32M | KDK32M | 5,87 |
| 3750048 | BT50BSMC32150M | 32 | 78 | — | — | 150 | KLSS32M | KDK32M | 7,62 |
| 3750049 | BT50BSMC40050M | 40 | 89 | 66,7 | M12 X 1.75 | 50 | KLSS40M | KDK40M | 4,36 |
| 3750050 | BT50BSMC40100M | 40 | 89 | 66,7 | M12 X 1.75 | 100 | KLSS40M | KDK40M | 6,40 |
| 3750051 | BT50BSMC40150M | 40 | 89 | 66,7 | M12 X 1.75 | 150 | KLSS40M | KDK40M | 8,26 |
| 3750052 | BT50BSMC60090M | 60 | 129 | 101,6 | M16 X 2.0 | 90 | — | KDK60M | 8,53 |
(continued)
