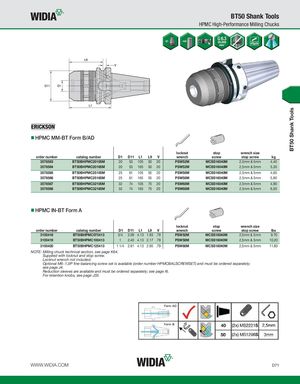

BT50 Shank Tools BT50 Shank Tools HPMC High-Performance Milling Chucks HPMC MM-BT Form B/AD locknut stop wrench size order number catalog number D1 D11 L1 L9 V wrench screw stop screw kg 3578563 BT50BHPMC20105M 20 53 105 50 20 PSW52M MCSS16040M 2,5mm & 5mm 4,40 3578564 BT50BHPMC20165M 20 53 165 50 20 PSW52M MCSS16040M 2,5mm & 5mm 5,30 3578565 BT50BHPMC25105M 25 61 105 55 20 PSW58M MCSS16040M 2,5mm & 5mm 4,60 3578566 BT50BHPMC25165M 25 61 165 55 20 PSW58M MCSS16040M 2,5mm & 5mm 5,80 3578567 BT50BHPMC32105M 32 74 105 75 20 PSW68M MCSS16040M 2,5mm & 5mm 4,90 3578568 BT50BHPMC32165M 32 74 165 75 20 PSW68M MCSS16040M 2,5mm & 5mm 6,50 HPMC IN-BT Form A locknut stop wrench size order number catalog number D1 D11 L1 L9 V wrench screw stop screw lbs 3100418 BT50BHPMC075413 3/4 2.09 4.13 1.93 .79 PSW52M MCSS16040M 2,5mm & 5mm 9.70 3100419 BT50BHPMC100413 1 2.40 4.13 2.17 .79 PSW58M MCSS16040M 2,5mm & 5mm 10.20 3100420 BT50BHPMC125413 1 1/4 2.91 4.13 2.95 .79 PSW68M MCSS16040M 2,5mm & 5mm 11.80 NOTE: Milling chuck technical section, see page K64. Supplied with locknut and stop screw. Locknut wrench not included. Optional M6~1,0P fine-balancing screw set is available (order number HPMCBALSCREWSET) and must be ordered separately; see page J4. Reduction sleeves are available and must be ordered separately; see page I6. For retention knobs, see page J33. WWW.WIDIA.COM D71
