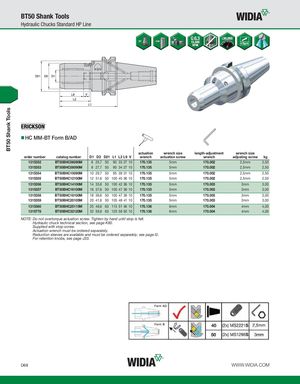

HC MM-BT Form B/AD
| order number | catalog number | D1 D2 | D2 | 1 L1 L2 L9 V | actuation wrench | wrench size actuation screw | length-adjustment wrench | wrench size adjusting screw | kg |
| 1315352 | BT50BHC06090M | 6 25,7 | 50 | 90 33 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,50 |
| 1315353 | BT50BHC08090M | 8 27,7 | 50 | 90 34 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,50 |
| 1315354 | BT50BHC10095M | 10 29,7 | 50 | 95 39 31 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,50 |
| 1315355 | BT50BHC12100M | 12 31,6 | 50 | 100 45 36 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,50 |
| 1315356 | BT50BHC14100M | 14 33,6 | 50 | 100 42 36 10 | 170.135 | 5mm | 170.003 | 3mm | 3,00 |
| 1315357 | BT50BHC16100M | 16 37,6 | 50 | 100 47 39 10 | 170.135 | 5mm | 170.003 | 3mm | 3,00 |
| 1315358 | BT50BHC18100M | 18 39,6 | 50 | 100 47 39 10 | 170.135 | 5mm | 170.003 | 3mm | 3,00 |
| 1315359 | BT50BHC20105M | 20 41,6 | 50 | 105 48 41 10 | 170.135 | 5mm | 170.003 | 3mm | 3,00 |
| 1315360 | BT50BHC25115M | 25 49,6 | 63 | 115 51 46 10 | 170.136 | 6mm | 170.004 | 4mm | 4,00 |
| 1315778 | BT50BHC32120M | 32 59,9 | 63 | 120 59 50 10 | 170.136 | 6mm | 170.004 | 4mm | 4,00 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33.
