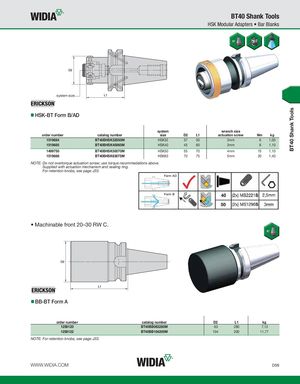

BT40 Shank Tools BT40 Shank Tools HSK Modular Adapters • Bar Blanks system size HSK-BT Form B/AD system wrench size order number catalog number size D2 L1 actuation screw Nm kg 1519684 BT40BHSK32050M HSK32 37 50 3mm 6 1,00 1519685 BT40BHSK40060M HSK40 45 60 3mm 8 1,10 1499750 BT40BHSK50070M HSK50 55 70 4mm 15 1,10 1519688 BT40BHSK63075M HSK63 70 75 5mm 20 1,40 NOTE: Do not overtorque actuation screw; use torque recommedations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. • Machinable front 20–30 RW C. BB-BT Form A order number catalog number D2 L1 kg 1258120 BT40BB063280M 63 280 7,12 1258122 BT40BB104200M 104 200 11,77 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM D59
