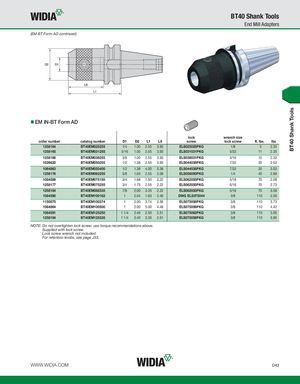

(EM BT Form AD continued)
EM IN-BT Form AD
| order number | catalog number | D1 | D2 | L1 | L9 | lock screw | wrench size lock screw | ft. lbs. | lbs |
| 1258164 | BT40EM025255 | 1/4 | 1.00 | 2.55 | 3.93 | ELS025025PKG | 1/8 | 5 | 2.35 |
| 1258165 | BT40EM031255 | 5/16 | 1.00 | 2.55 | 3.93 | ELS031031PKG | 5/32 | 11 | 2.35 |
| 1258166 | BT40EM038255 | 3/8 | 1.00 | 2.55 | 3.93 | ELS038031PKG | 3/16 | 15 | 2.32 |
| 1026620 | BT40EM050255 | 1/2 | 1.38 | 2.55 | 3.93 | ELS044038PKG | 7/32 | 20 | 2.52 |
| 1064863 | BT40EM050400 | 1/2 | 1.38 | 4.00 | 5.38 | ELS044038PKG | 7/32 | 20 | 3.03 |
| 1258176 | BT40EM062255 | 5/8 | 1.63 | 2.55 | 2.09 | ELS056050PKG | 1/4 | 40 | 2.69 |
| 1084589 | BT40EM075150 | 3/4 | 1.68 | 1.50 | 2.22 | ELS062050PKG | 5/16 | 70 | 2.08 |
| 1258177 | BT40EM075255 | 3/4 | 1.75 | 2.55 | 2.22 | ELS062050PKG | 5/16 | 70 | 2.73 |
| 1258184 | BT40EM088335 | 7/8 | 2.00 | 3.35 | 2.22 | ELS062050PKG | 5/16 | 70 | 3.58 |
| 1084590 | BT40EM100162 | 1 | 2.04 | 1.63 | 2.46 | DWG ELS075044 | 3/8 | 110 | 2.00 |
| 1150875 | BT40EM100374 | 1 | 2.00 | 3.74 | 2.56 | ELS075056PKG | 3/8 | 110 | 3.73 |
| 1064864 | BT40EM100500 | 1 | 2.00 | 5.00 | 4.49 | ELS075056PKG | 3/8 | 110 | 4.42 |
| 1084591 | BT40EM125250 | 1 1/4 | 2.46 | 2.50 | 2.51 | ELS075062PKG | 3/8 | 110 | 3.05 |
| 1258194 | BT40EM125335 | 1 1/4 | 2.40 | 3.35 | 2.51 | ELS075056PKG | 3/8 | 110 | 3.95 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
