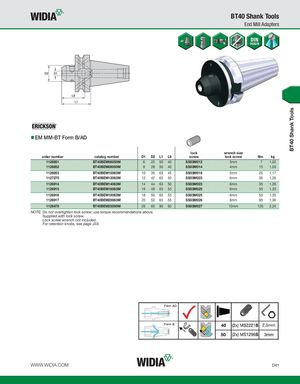

EM MM-BT Form B/AD
| order number | catalog number | D1 | D2 | L1 L9 | lock screw | wrench size lock screw | Nm | kg |
| 1126851 | BT40BEM06050M | 6 | 25 | 50 40 | SS03M012 | 3mm | 7 | 1,02 |
| 1126852 | BT40BEM08050M | 8 | 28 | 50 40 | SS03M014 | 4mm | 15 | 1,03 |
| 1126853 | BT40BEM10063M | 10 | 35 | 63 45 | SS03M018 | 5mm | 25 | 1,17 |
| 1127275 | BT40BEM12063M | 12 | 42 | 63 50 | SS03M023 | 6mm | 35 | 1,26 |
| 1126914 | BT40BEM14063M | 14 | 44 | 63 50 | SS03M023 | 6mm | 35 | 1,28 |
| 1126915 | BT40BEM16063M | 16 | 48 | 63 53 | SS03M025 | 6mm | 50 | 1,33 |
| 1126916 | BT40BEM18063M | 18 | 50 | 63 53 | SS03M025 | 6mm | 50 | 1,35 |
| 1126917 | BT40BEM20063M | 20 | 52 | 63 55 | SS03M026 | 8mm | 95 | 1,36 |
| 1126478 | BT40BEM25090M | 25 | 65 | 90 60 | SS03M027 | 10mm | 135 | 2,24 |
NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33.
