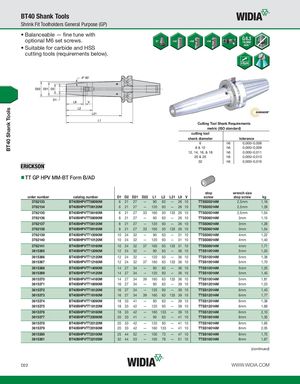

BT40 Shank Tools BT40 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-BT Form B/AD stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3782133 BT40BHPVTT06090M 6 21 27 — 90 63 — 26 10 TTSS05014M 2,5mm 1,16 3782134 BT40BHPVTT06120M 6 21 27 — 120 93 — 26 10 TTSS05014M 2,5mm 1,29 3782135 BT40BHPVTT06160M 6 21 27 33 160 50 133 26 10 TTSS05014M 2,5mm 1,54 3782136 BT40BHPVTT08090M 8 21 27 — 90 63 — 26 10 TTSS06014M 3mm 1,15 3782137 BT40BHPVTT08120M 8 21 27 — 120 93 — 26 10 TTSS06014M 3mm 1,28 3782138 BT40BHPVTT08160M 8 21 27 33 160 50 133 26 10 TTSS06014M 3mm 1,54 3782139 BT40BHPVTT10090M 10 24 32 — 90 63 — 31 10 TTSS08014M 4mm 1,22 3782140 BT40BHPVTT10120M 10 24 32 — 120 93 — 31 10 TTSS08014M 4mm 1,40 3782141 BT40BHPVTT10160M 10 24 32 37 160 63 133 31 10 TTSS08014M 4mm 1,71 3615365 BT40BHPVTT12090M 12 24 32 — 90 63 — 36 10 TTSS10014M 5mm 1,20 3615366 BT40BHPVTT12120M 12 24 32 — 120 93 — 36 10 TTSS10014M 5mm 1,38 3615367 BT40BHPVTT12160M 12 24 32 37 160 63 133 36 10 TTSS10014M 5mm 1,70 3615368 BT40BHPVTT14090M 14 27 34 — 90 63 — 36 10 TTSS10014M 5mm 1,25 3615369 BT40BHPVTT14120M 14 27 34 — 120 93 — 36 10 TTSS10014M 5mm 1,45 3615370 BT40BHPVTT14160M 14 27 34 39 160 63 133 36 10 TTSS10014M 5mm 1,81 3615371 BT40BHPVTT16090M 16 27 34 — 90 63 — 39 10 TTSS12014M 6mm 1,23 3615372 BT40BHPVTT16120M 16 27 34 — 120 93 — 39 10 TTSS12014M 6mm 1,43 3615373 BT40BHPVTT16160M 16 27 34 39 160 63 133 39 10 TTSS12014M 6mm 1,77 3615374 BT40BHPVTT18090M 18 33 41 — 90 63 — 39 10 TTSS12014M 6mm 1,38 3615375 BT40BHPVTT18120M 18 33 42 — 120 93 — 39 10 TTSS12014M 6mm 1,69 3615376 BT40BHPVTT18160M 18 33 42 — 160 133 — 39 10 TTSS12014M 6mm 2,10 3615377 BT40BHPVTT20090M 20 33 41 — 90 63 — 41 10 TTSS16014M 8mm 1,35 3615378 BT40BHPVTT20120M 20 33 42 — 120 93 — 41 10 TTSS16014M 8mm 1,65 3615379 BT40BHPVTT20160M 20 33 42 — 160 133 — 41 10 TTSS16014M 8mm 2,05 3615380 BT40BHPVTT25100M 25 44 52 — 100 73 — 47 10 TTSS16014M 8mm 1,75 3615381 BT40BHPVTT32105M 32 44 53 — 105 78 — 51 10 TTSS16014M 8mm 1,67 (continued) D22 WWW.WIDIA.COM
