L1FC = from flange face L1 = from taper gage diameter

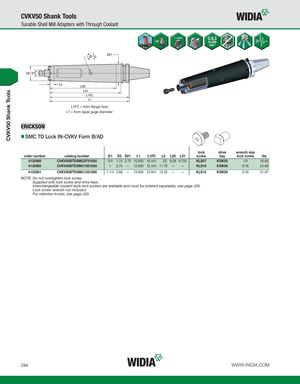

SMC TD Lock IN-CVKV Form B/AD
| order number | catalog number | D1 | D2 D21 | L1 | L1FC | L2 L20 L21 | lock screw | drive key | wrench size lock screw | lbs |
| 4135499 | CVKV50BTDSMC0751050 | 3/4 | 1.75 2.75 | 10.500 | 10.441 | .53 9.09 9.750 | KLS07 | KDK05 | 1/4 | 16.60 |
| 4135500 | CVKV50BTDSMC1001250 | 1 | 2.75 — | 12.500 | 12.441 | 11.75 — — | KLS10 | KDK06 | 5/16 | 24.68 |
| 4135501 | CVKV50BTDSMC1251300 | 1 1/4 | 2.88 — | 13.000 | 12.941 | 12.25 — — | KLS12 | KDK08 | 5/16 | 31.97 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knobs, see page J33.
