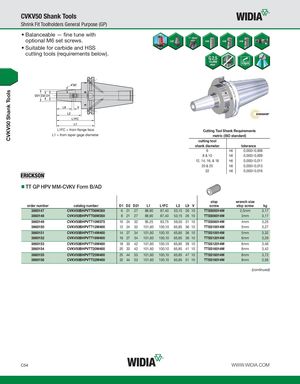

CVKV50 Shank Tools CVKV50 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). L1FC = from flange face Cutting Tool Shank Requirements L1 = from taper gage diameter metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-CVKV Form B/AD stop wrench size order number catalog number D1 D2 D21 L1 L1FC L2 L9 V screw stop screw kg 3860147 CVKV50BHPVTT06M350 6 21 27 88,90 87,40 53,15 26 10 TTSS05014M 2,5mm 3,17 3860148 CVKV50BHPVTT08M350 8 21 27 88,90 87,40 53,15 26 10 TTSS06014M 3mm 3,17 3860149 CVKV50BHPVTT10M375 10 24 32 95,25 93,75 59,50 31 10 TTSS08014M 4mm 3,25 3860150 CVKV50BHPVTT12M400 12 24 32 101,60 100,10 65,85 36 10 TTSS10014M 5mm 3,27 3860151 CVKV50BHPVTT14M400 14 27 34 101,60 100,10 65,85 36 10 TTSS10014M 5mm 3,32 3860152 CVKV50BHPVTT16M400 16 27 34 101,60 100,10 65,85 39 10 TTSS12014M 6mm 3,29 3860153 CVKV50BHPVTT18M400 18 33 42 101,60 100,10 65,85 39 10 TTSS12014M 6mm 3,46 3860154 CVKV50BHPVTT20M400 20 33 42 101,60 100,10 65,85 41 10 TTSS16014M 8mm 3,42 3860155 CVKV50BHPVTT25M400 25 44 53 101,60 100,10 65,85 47 10 TTSS16014M 8mm 3,72 3860156 CVKV50BHPVTT32M400 32 44 53 101,60 100,10 65,85 51 10 TTSS16014M 8mm 3,56 (continued) C54 WWW.WIDIA.COM
