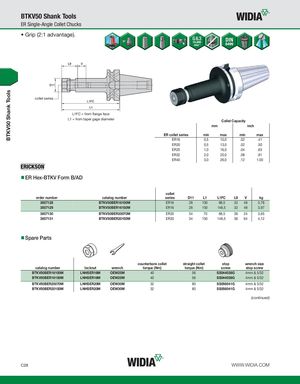

- Grip (2:1 advantage).
collet series
L1FC = from flange face L1 = from taper gage diameter Collet Capacity
| m | m | in | ch | |
| ER collet series | min | max | min | max |
| ER16 | 0,5 | 10,0 | .02 | .41 |
| ER20 | 0,5 | 13,0 | .02 | .50 |
| ER25 | 1,0 | 16,0 | .04 | .63 |
| ER32 | 2,0 | 20,0 | .08 | .81 |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-BTKV Form B/AD
| order number | catalog number | collet series | D11 | L1 | L1FC | L9 | V | kg |
| 3857128 | BTKV50BER16100M | ER16 | 28 | 100 | 98,5 | 32 | 48 | 3,78 |
| 3857129 | BTKV50BER16150M | ER16 | 28 | 150 | 148,5 | 32 | 48 | 3,97 |
| 3857130 | BTKV50BER20070M | ER20 | 34 | 70 | 68,5 | 36 | 24 | 3,65 |
| 3857131 | BTKV50BER20150M | ER20 | 34 | 150 | 148,5 | 36 | 64 | 4,12 |
Spare Parts
| catalog number | locknut | wrench | counterbore collet torque (Nm) | straight collet torque (Nm) | stop screw | wrench size stop screw |
| BTKV50BER16100M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| BTKV50BER16150M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| BTKV50BER20070M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
| BTKV50BER20150M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
(continued)
