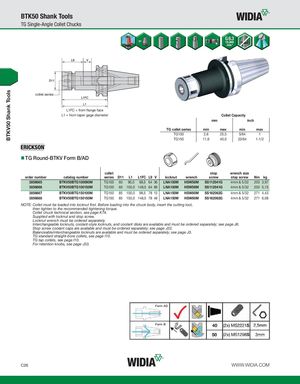

BTK50 Shank Tools
collet series
L1FC = from flange face L1 = from taper gage diameter Collet Capacity mm inch
| TG collet series | min | max | min | max | |
| TG100 | 2,6 | 25,5 | 5/64 | 1 | |
| TG150 | 11,6 | 40,0 | 23/64 | 1-1/2 |
TG Round-BTKV Form B/AD
| order number | catalog number | collet series | D11 | L1 | L1FC | L9 V | locknut | wrench | stop screw | wrench size stop screw | Nm | kg |
| 3856665 3856666 | BTKV50BTG100090M BTKV50BTG100150M | TG100 TG100 | 60 60 | 90,0 150,0 | 88,5 148,5 | 64 36 64 89 | LNA100M LNA100M | HSW58M HSW58M | SS112041G SS112041G | 4mm & 5/32 4mm & 5/32 | 203 203 | 3,97 5,15 |
| 3856667 | BTKV50BTG150100M | TG150 | 85 | 100,0 | 98,5 | 78 13 | LNA150M | HSW80M | SS162062G | 4mm & 5/32 | 271 | 4,43 |
| 3856668 | BTKV50BTG150150M | TG150 | 85 | 150,0 | 148,5 | 78 49 | LNA150M | HSW80M | SS162062G | 4mm & 5/32 | 271 | 6,08 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33.
