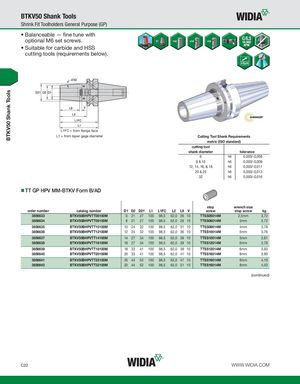

BTKV50 Shank Tools BTKV50 Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). L1FC = from flange face L1 = from taper gage diameter Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-BTKV Form B/AD stop wrench size order number catalog number D1 D2 D21 L1 L1FC L2 L9 V screw stop screw kg 3856633 BTKV50BHPVTT06100M 6 21 27 100 98,5 62,0 26 10 TTSS05014M 2,5mm 3,72 3856634 BTKV50BHPVTT08100M 8 21 27 100 98,5 62,0 26 10 TTSS06014M 3mm 3,72 3856635 BTKV50BHPVTT10100M 10 24 32 100 98,5 62,0 31 10 TTSS08014M 4mm 3,78 3856636 BTKV50BHPVTT12100M 12 24 32 100 98,5 62,0 36 10 TTSS10014M 5mm 3,76 3856637 BTKV50BHPVTT14100M 14 27 34 100 98,5 62,0 36 10 TTSS10014M 5mm 3,81 3856638 BTKV50BHPVTT16100M 16 27 34 100 98,5 62,0 39 10 TTSS12014M 6mm 3,79 3856639 BTKV50BHPVTT18100M 18 33 41 100 98,5 62,0 39 10 TTSS12014M 6mm 3,93 3856640 BTKV50BHPVTT20100M 20 33 41 100 98,5 62,0 41 10 TTSS16014M 8mm 3,90 3856641 BTKV50BHPVTT25100M 25 44 52 100 98,5 62,0 47 10 TTSS16014M 8mm 4,19 3856642 BTKV50BHPVTT32100M 32 44 52 100 98,5 62,0 51 10 TTSS16014M 8mm 4,03 (continued) C22 WWW.WIDIA.COM
