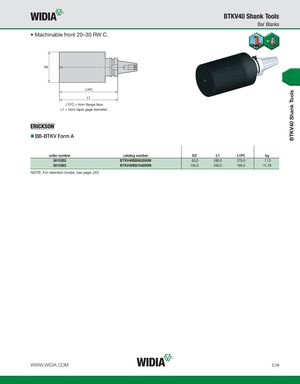

BTKV40 Shank Tools BTKV40 Shank Tools Bar Blanks • Machinable front 20–30 RW C. L1FC = from flange face L1 = from taper gage diameter BB-BTKV Form A order number catalog number D2 L1 L1FC kg 3815352 BTKV40BB063280M 63,0 280,0 279,0 7,13 3815363 BTKV40BB104200M 104,0 200,0 199,0 11,78 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM C19
