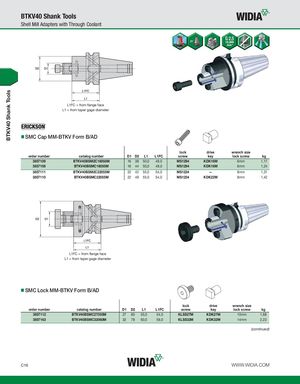

L1FC = from flange face L1 = from taper gage diameter
SMC Cap MM-BTKV Form B/AD
| order number | catalog number | D1 | D2 | L1 | L1FC | lock screw | drive key | wrench size lock screw | kg |
| 3857109 | BTKV40BSM2C16050M | 16 | 38 | 50,0 | 49,0 | MS1294 | KDK16M | 6mm | 1,17 |
| 3857108 | BTKV40BSMC16050M | 16 | 44 | 50,0 | 49,0 | MS1294 | KDK16M | 6mm | 1,24 |
| 3857111 | BTKV40BSM2C22055M | 22 | 42 | 55,0 | 54,0 | MS1234 | — | 8mm | 1,31 |
| 3857110 | BTKV40BSMC22055M | 22 | 49 | 55,0 | 54,0 | MS1234 | KDK22M | 8mm | 1,42 |
L1FC = from flange face L1 = from taper gage diameter
SMC Lock MM-BTKV Form B/AD
lock drive wrench size
| order number | catalog number | D1 | D2 | L1 | L1FC | screw | key | lock screw | kg | |||
| 3857112 | BTKV40BSMC27055M | 27 | 60 | 55,0 | 54,0 | KLSS27M | KDK27M | 10mm | 1,68 | |||
| 3857163 | BTKV40BSMC32060M | 32 | 78 | 60,0 | 59,0 | KLSS32M | KDK32M | 14mm | 2,23 |
(continued)
