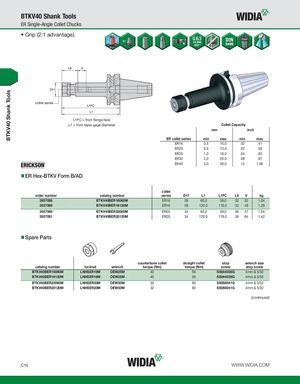

Каталог Widia инструментальная оснастка - страница 550
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
- Grip (2:1 advantage).
collet series
L1FC = from flange face L1 = from taper gage diameter
ER Hex-BTKV Form B/AD
Collet Capacity mm inch
| ER collet series | min | max | min | max |
| ER16 | 0,5 | 10,0 | .02 | .41 |
| ER20 | 0,5 | 13,0 | .02 | .50 |
| ER25 | 1,0 | 16,0 | .04 | .63 |
| ER32 | 2,0 | 20,0 | .08 | .81 |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
| order number | catalog number | collet series | D11 | L1 | L1FC | L9 | V | kg |
| 3857088 | BTKV40BER16060M | ER16 | 28 | 60,0 | 59,0 | 32 | 32 | 1,04 |
| 3857089 | BTKV40BER16120M | ER16 | 28 | 120,0 | 119,0 | 32 | 48 | 1,29 |
| 3857090 | BTKV40BER20060M | ER20 | 34 | 60,0 | 59,0 | 36 | 27 | 1,04 |
| 3857091 | BTKV40BER20120M | ER20 | 34 | 120,0 | 119,0 | 36 | 64 | 1,42 |
Spare Parts
| catalog number | locknut | wrench | counterbore collet torque (Nm) | straight collet torque (Nm) | stop screw | wrench size stop screw |
| BTKV40BER16060M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| BTKV40BER16120M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 |
| BTKV40BER20060M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
| BTKV40BER20120M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 |
(continued)
