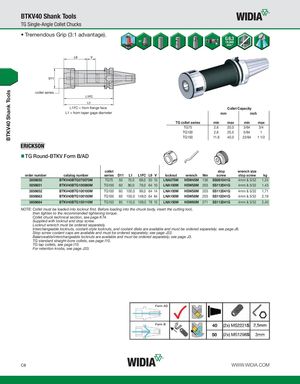

BTKV40 Shank Tools BTKV40 Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series L1FC = from flange face Collet Capacity L1 = from taper gage diameter mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1 1/2 TG Round-BTKV Form B/AD collet stop wrench size order number catalog number series D11 L1 L1FC L9 V locknut wrench Nm screw stop screw kg 3856650 BTKV40BTG075070M TG75 50 70,0 69,0 50 10 LNA075M HSW45M 136 SS081041G 4mm & 5/32 1,24 3856651 BTKV40BTG100080M TG100 60 80,0 79,0 64 10 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,43 3856652 BTKV40BTG100100M TG100 60 100,0 99,0 64 14 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,71 3856663 BTKV40BTG100150M TG100 60 150,0 149,0 64 64 LNA100M HSW58M 203 SS112041G 4mm & 5/32 2,19 3856664 BTKV40BTG150110M TG150 85 110,0 109,0 78 15 LNA150M HSW80M 271 SS112041G 4mm & 5/32 2,40 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. C8 WWW.WIDIA.COM
