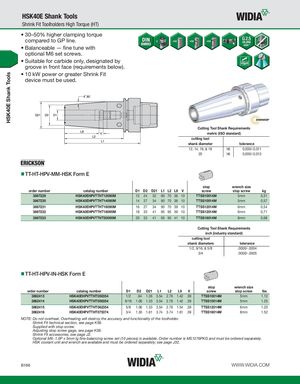

Каталог Widia инструментальная оснастка - страница 522
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
- 30–50% higher clamping torque compared to GP line.
- Balanceable — fine tune with optional M6 set screws.
- Suitable for carbide only, designated by groove in front face (requirements below).
- 10 kW power or greater Shrink Fit device must be used.
Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance
| 12, 14, 16, & 18 | h6 | 0,000/-0,011 | |
| 20 | h6 | 0,000/-0,013 |
TT-HT-HPV-MM-HSK Form E
| order number | catalog number | D1 | D2 | D21 | L1 L2 | L9 | V | stop screw | wrench size stop screw | kg |
| 3867229 | HSK40EHPVTTHT12090M | 12 | 24 | 32 | 90 70 | 36 | 10 | TTSS10014M | 5mm | 0,51 |
| 3867230 | HSK40EHPVTTHT14090M | 14 | 27 | 34 | 90 70 | 36 | 10 | TTSS10014M | 5mm | 0,57 |
| 3867231 | HSK40EHPVTTHT16090M | 16 | 27 | 34 | 90 70 | 39 | 10 | TTSS12014M | 6mm | 0,54 |
| 3867232 | HSK40EHPVTTHT18095M | 18 | 33 | 41 | 95 95 | 39 | 10 | TTSS12014M | 6mm | 0,71 |
| 3867233 | HSK40EHPVTTHT20095M | 20 | 33 | 41 | 95 95 | 41 | 10 | TTSS16014M | 8mm | 0,68 |
Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/2, 9/16, & 5/8 .0000/-.0004 3/4 .0000/-.0005
TT-HT-HPV-IN-HSK Form E
| order number | catalog number | D1 | D2 | D21 | L1 | L2 | L9 | V | stop screw | wrench size stop screw | lbs |
| 3862413 | HSK40EHPVTTHT050354 | 1/2 | .94 | 1.26 | 3.54 | 2.76 | 1.42 | .39 | TTSS10014M | 5mm | 1.12 |
| 3862414 | HSK40EHPVTTHT056354 | 9/16 | 1.06 | 1.33 | 3.54 | 2.76 | 1.42 | .39 | TTSS10014M | 5mm | 1.25 |
| 3862415 | HSK40EHPVTTHT062354 | 5/8 | 1.06 | 1.33 | 3.54 | 2.76 | 1.54 | .39 | TTSS12014M | 6mm | 1.20 |
| 3862416 | HSK40EHPVTTHT075374 | 3/4 | 1.30 | 1.61 | 3.74 | 3.74 | 1.61 | .39 | TTSS16014M | 8mm | 1.52 |
NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. Optional M6~1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
