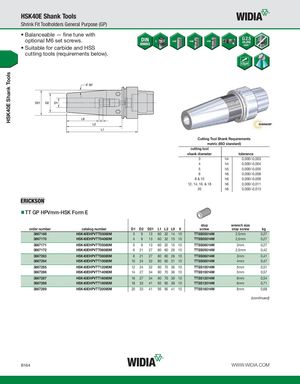

HSK40E Shank Tools HSK40E Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 3 h4 0,000/-0,003 4 h4 0,000/-0,004 5 h5 0,000/-0,005 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 h6 0,000/-0,013 TT GP HPVmm-HSK Form E stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3867169 HSK40EHPVTT03060M 3 9 13 60 32 14 10 TTSS05014M 2,5mm 0,27 3867170 HSK40EHPVTT04060M 4 9 13 60 32 15 10 TTSS05014M 2,5mm 0,27 3867171 HSK40EHPVTT05060M 5 9 13 60 32 15 10 TTSS06014M 3mm 0,27 3867172 HSK40EHPVTT06080M 6 21 27 80 60 26 10 TTSS05014M 2,5mm 0,42 3867263 HSK40EHPVTT08080M 8 21 27 80 60 26 10 TTSS06014M 3mm 0,41 3867264 HSK40EHPVTT10080M 10 24 32 80 60 31 10 TTSS08014M 4mm 0,47 3867265 HSK40EHPVTT12090M 12 24 32 90 70 36 10 TTSS10014M 5mm 0,51 3867266 HSK40EHPVTT14090M 14 27 34 90 70 36 10 TTSS10014M 5mm 0,57 3867267 HSK40EHPVTT16090M 16 27 34 90 70 39 10 TTSS12014M 6mm 0,54 3867268 HSK40EHPVTT18095M 18 33 41 95 95 39 10 TTSS12014M 6mm 0,71 3867269 HSK40EHPVTT20095M 20 33 41 95 95 41 10 TTSS16014M 8mm 0,68 (continued) B164 WWW.WIDIA.COM
