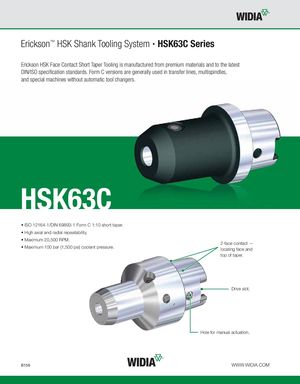

Erickson™ HSK Shank Tooling System • HSK63C Series Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest DIN/ISO specification standards. Form C versions are generally used in transfer lines, multispindles, and special machines without automatic tool changers. HSK63C • ISO 12164-1/DIN 69893-1 Form C 1:10 short taper. • High axial and radial repeatability. • Maximum 20,500 RPM. 2-face contact — • Maximum 100 bar (1,500 psi) coolant pressure. locating face and top of taper. Drive slot. Hole for manual actuation. B156 WWW.WIDIA.COM
