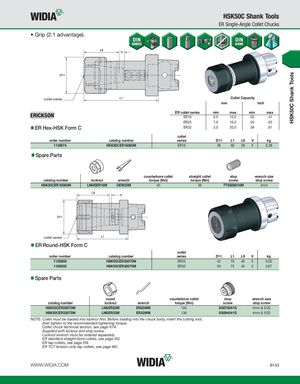

- Grip (2:1 advantage).
Collet Capacity collet series mm inch
| ER collet series | min | max | min | max | |||
| ER16 | 0,5 | 10,0 | .02 | .41 | |||
| ER25 | 1,0 | 16,0 | .04 | .63 | |||
| ER Hex-HSK Form C | ER32 | 2,0 | 20,0 | .08 | .81 | ||
| collet | |||||||
| order number catalog number | series | D11 | L1 | L9 | V | kg | |
| 1139074 HSK50CER16060M | ER16 | 28 | 60 | 28 | 5 | 0,38 |
Spare Parts
| counterbore collet | straight collet | stop | wrench size | ||||
| catalog number | locknut | wrench | torque (Nm) | torque (Nm) | screw | stop screw |
HSK50CER16060M LNHSER16M OEW25M 40 56 TTSS08014M 4mm
collet series
ER Round-HSK Form C
collet
| order number | catalog number | series | D11 | L1 | L9 | V | kg | |
| 1120659 | HSK50CER25070M | ER25 | 42 | 70 | 40 | 5 | 0,50 | |
| 1126932 | HSK50CER32075M | ER32 | 50 | 75 | 45 | 5 | 0,67 |
Spare Parts
| round | counterbore collet | stop | wrench size | ||||||
| catalog number | locknut | wrench | torque (Nm) | screw | stop screw | ||||
| HSK50CER25070M | LNSER25M | ER25WM | 104 | SS075041G | 4mm & 5/32 | ||||
| HSK50CER32075M | LNSER32M | ER32WM | 136 | SS094041G | 4mm & 5/32 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw.
Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60.
