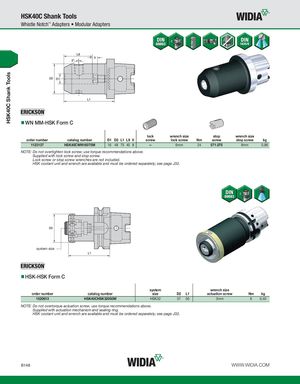

HSK40C Shank Tools HSK40C Shank Tools Whistle Notch™ Adapters • Modular Adapters WN MM-HSK Form C lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg 1123137 HSK40CWN16075M 16 48 75 40 8 — 6mm 24 571.075 6mm 0,86 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches are not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. system size HSK-HSK Form C system wrench size order number catalog number size D2 L1 actuation screw Nm kg 1520613 HSK40CHSK32050M HSK32 37 50 3mm 6 0,40 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B148 WWW.WIDIA.COM
