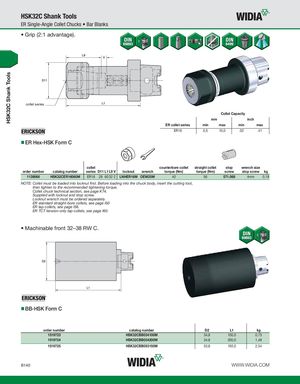

HSK32C Shank Tools HSK32C Shank Tools ER Single-Angle Collet Chucks • Bar Blanks • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER Hex-HSK Form C collet counterbore collet straight collet stop wrench size order number catalog number series D11 L1 L9 V locknut wrench torque (Nm) torque (Nm) screw stop screw kg 1139068 HSK32CER16060M ER16 28 60 32 2 LNHER16M OEW25M 40 56 571.068 4mm 0,19 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50 ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. • Machinable front 32–38 RW C. BB-HSK Form C order number catalog number D2 L1 kg 1519723 HSK32CBB034100M 34,8 100,0 0,73 1519724 HSK32CBB034200M 34,8 200,0 1,48 1519725 HSK32CBB053150M 53,8 150,0 2,54 B140 WWW.WIDIA.COM
