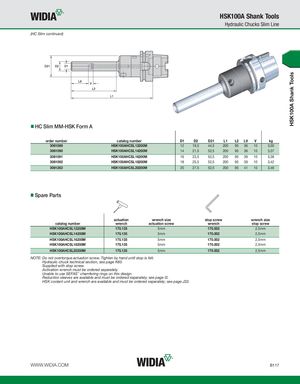

HSK100A Shank Tools HSK100A Shank Tools Hydraulic Chucks Slim Line (HC Slim continued) HC Slim MM-HSK Form A order number catalog number D1 D2 D21 L1 L2 L9 V kg 3061089 HSK100AHCSL12200M 12 19,5 44,5 200 95 36 10 3,00 3061090 HSK100AHCSL14200M 14 21,5 52,5 200 95 36 10 3,37 3061091 HSK100AHCSL16200M 16 23,5 52,5 200 95 39 10 3,38 3061092 HSK100AHCSL18200M 18 25,5 52,5 200 95 39 10 3,42 3061263 HSK100AHCSL20200M 20 27,5 52,5 200 95 41 10 3,46 Spare Parts actuation wrench size stop screw wrench size catalog number wrench actuation screw wrench stop screw HSK100AHCSL12200M 170.135 5mm 170.002 2,5mm HSK100AHCSL14200M 170.135 5mm 170.002 2,5mm HSK100AHCSL16200M 170.135 5mm 170.002 2,5mm HSK100AHCSL18200M 170.135 5mm 170.002 2,5mm HSK100AHCSL20200M 170.135 5mm 170.002 2,5mm NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Activation wrench must be ordered separately. Unable to use SEFAS™ chamfering rings on this design. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B117
