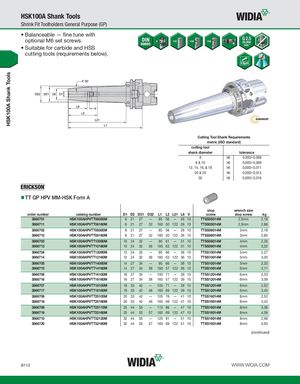

HSK100A Shank Tools HSK100A Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-HSK Form A stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3866701 HSK100AHPVTT06085M 6 21 27 — 85 56 — 26 10 TTSS05014M 2,5mm 2,18 3866711 HSK100AHPVTT06160M 6 21 27 32 160 50 122 26 10 TTSS05014M 2,5mm 2,86 3866702 HSK100AHPVTT08085M 8 21 27 — 85 56 — 26 10 TTSS06014M 3mm 2,18 3866712 HSK100AHPVTT08160M 8 21 27 32 160 50 122 26 10 TTSS06014M 3mm 2,85 3866703 HSK100AHPVTT10090M 10 24 32 — 90 61 — 31 10 TTSS08014M 4mm 2,26 3866713 HSK100AHPVTT10160M 10 24 32 36 160 63 122 31 10 TTSS08014M 4mm 3,02 3866704 HSK100AHPVTT12095M 12 24 32 — 95 66 — 36 10 TTSS10014M 5mm 2,27 3866714 HSK100AHPVTT12160M 12 24 32 36 160 63 122 36 10 TTSS10014M 5mm 3,00 3866705 HSK100AHPVTT14095M 14 27 34 — 95 66 — 36 10 TTSS10014M 5mm 2,33 3866715 HSK100AHPVTT14160M 14 27 34 38 160 57 122 36 10 TTSS10014M 5mm 3,11 3866706 HSK100AHPVTT16100M 16 27 34 — 100 71 — 39 10 TTSS12014M 6mm 2,33 3866716 HSK100AHPVTT16160M 16 27 34 38 160 57 122 39 10 TTSS12014M 6mm 3,09 3866707 HSK100AHPVTT18100M 18 33 42 — 100 71 — 39 10 TTSS12014M 6mm 2,52 3866717 HSK100AHPVTT18160M 18 33 42 46 160 69 122 39 10 TTSS12014M 6mm 3,45 3866708 HSK100AHPVTT20105M 20 33 42 — 105 76 — 41 10 TTSS16014M 8mm 2,53 3866718 HSK100AHPVTT20160M 20 33 42 46 160 69 122 41 10 TTSS16014M 8mm 3,42 3866709 HSK100AHPVTT25115M 25 44 53 — 115 86 — 47 10 TTSS16014M 8mm 3,06 3866719 HSK100AHPVTT25160M 25 44 53 57 160 69 122 47 10 TTSS16014M 8mm 4,09 3866710 HSK100AHPVTT32120M 32 44 53 — 120 91 — 51 10 TTSS16014M 8mm 2,98 3866720 HSK100AHPVTT32160M 32 44 53 57 160 69 122 51 10 TTSS16014M 8mm 3,93 (continued) B112 WWW.WIDIA.COM
