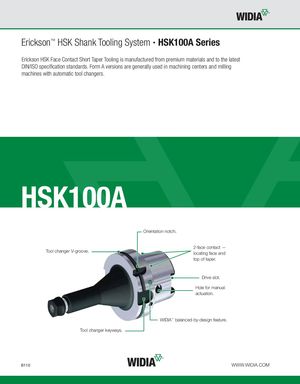

Erickson™ HSK Shank Tooling System • HSK100A Series Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest DIN/ISO specification standards. Form A versions are generally used in machining centers and milling machines with automatic tool changers. HSK100A Orientation notch. 2-face contact — Tool changer V-groove. locating face and top of taper. Drive slot. Hole for manual actuation. WIDIA™ balanced-by-design feature. Tool changer keyways. B110 WWW.WIDIA.COM
