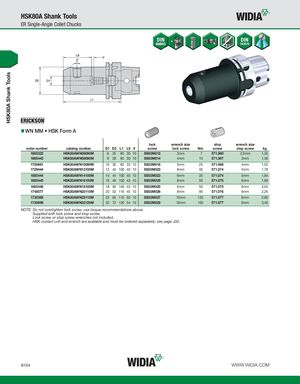

HSK80A Shank Tools HSK80A Shank Tools ER Single-Angle Collet Chucks WN MM • HSK Form A lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg 1885322 HSK80AWN06090M 6 25 90 30 10 SS03M012 3mm 7 571.060 2,5mm 1,30 1885443 HSK80AWN08090M 8 28 90 30 10 SS03M014 4mm 15 571.067 3mm 1,36 1750661 HSK80AWN10090M 10 35 90 33 10 SS03M018 5mm 25 571.068 4mm 1,52 1729444 HSK80AWN12100M 12 42 100 40 10 SS03M023 6mm 35 571.074 5mm 1,78 1885444 HSK80AWN14100M 14 44 100 40 10 SS03M023 6mm 35 571.074 5mm 1,84 1885445 HSK80AWN16100M 16 48 100 43 10 SS03M025 6mm 50 571.075 6mm 1,98 1885446 HSK80AWN18100M 18 50 100 43 10 SS03M025 6mm 50 571.075 6mm 2,04 1748577 HSK80AWN20110M 20 52 110 45 10 SS03M026 8mm 95 571.076 6mm 2,26 1730388 HSK80AWN25110M 25 65 110 50 10 SS03M027 10mm 135 571.077 6mm 2,90 1730699 HSK80AWN32120M 32 72 120 54 10 SS03M029 10mm 160 571.077 6mm 3,45 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B104 WWW.WIDIA.COM
