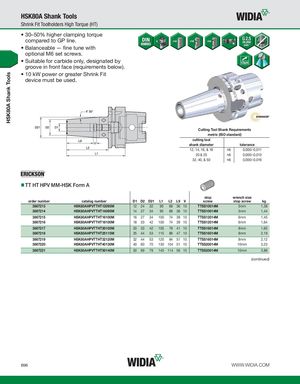

HSK80A Shank Tools HSK80A Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 TT HT HPV MM-HSK Form A stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3867213 HSK80AHPVTTHT12095M 12 24 32 95 69 36 10 TTSS10014M 5mm 1,38 3867214 HSK80AHPVTTHT14095M 14 27 34 95 69 36 10 TTSS10014M 5mm 1,44 3867215 HSK80AHPVTTHT16100M 16 27 34 100 74 39 10 TTSS12014M 6mm 1,45 3867216 HSK80AHPVTTHT18100M 18 33 42 100 74 39 10 TTSS12014M 6mm 1,64 3867217 HSK80AHPVTTHT20105M 20 33 42 105 79 41 10 TTSS16014M 8mm 1,65 3867218 HSK80AHPVTTHT25115M 25 44 53 115 89 47 10 TTSS16014M 8mm 2,19 3867219 HSK80AHPVTTHT32120M 32 44 53 120 94 51 10 TTSS16014M 8mm 2,12 3867220 HSK80AHPVTTHT40130M 40 60 70 130 104 51 10 TTSS20014M 10mm 3,23 3867221 HSK80AHPVTTHT50140M 50 69 79 140 114 56 10 TTSS20014M 10mm 3,88 (continued) B96 WWW.WIDIA.COM
