Erickson™ HSK Shank Tooling System • HSK80A Series
Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest
DIN/ISO specification standards. Form A versions are generally used in machining centers and milling
machines with automatic tool changers.

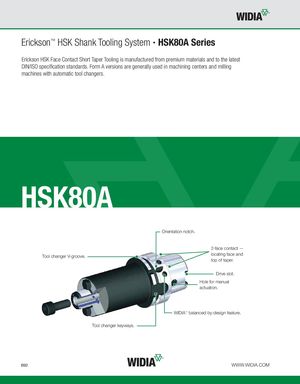

HSK80A
Orientation notch.

2-face contact —
locating face and
Tool changer V-groove.
top of taper.

Drive slot.
Hole for manual
actuation.


WIDIA™ balanced-by-design feature.
Tool changer keyways.
