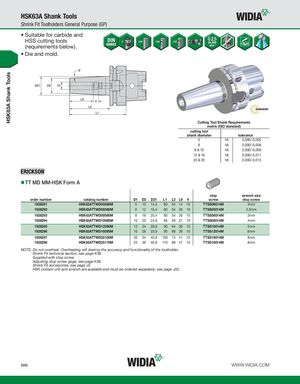

- Suitable for carbide and HSS cutting tools (requirements below).
- Die and mold.
Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance
| 5 | h5 | 0,000/-0,005 | |
| 6 | h6 | 0,000/-0,008 | |
| 8 & 10 | h6 | 0,000/-0,009 | |
| 12 & 16 | h6 | 0,000/-0,011 | |
| 20 & 25 | h6 | 0,000/-0,013 |
TT MD MM-HSK Form A
stop wrench size
| order number | catalog number D1 | D2 | D21 | L1 | L2 L9 | V | stop screw screw | ||
| 1926291 | HSK63ATTMD05080M | 5 | 10 | 14,4 | 80 | 54 14 | 10 | TTSS06014M | 3mm |
| 1926292 | HSK63ATTMD06080M | 6 | 12 | 16,4 | 80 | 54 26 | 10 | TTSS05014M | 2,5mm |
| 1926293 | HSK63ATTMD08080M | 8 | 16 | 20,4 | 80 | 54 26 | 10 | TTSS06014M | 3mm |
| 1926294 | HSK63ATTMD10085M | 10 | 20 | 24,9 | 85 | 59 31 | 10 | TTSS08014M | 4mm |
| 1926295 | HSK63ATTMD12090M | 12 | 24 | 29,9 | 90 | 64 36 | 10 | TTSS10014M | 5mm |
| 1926296 | HSK63ATTMD16095M | 16 | 28 | 33,9 | 95 | 69 39 | 10 | TTSS12014M | 6mm |
| 1926297 | HSK63ATTMD20100M | 20 | 34 | 40,9 | 100 | 74 41 | 10 | TTSS16014M | 8mm |
| 1926298 | HSK63ATTMD25115M | 25 | 39 | 46,9 | 115 | 89 47 | 10 | TTSS16014M | 8mm |
NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
