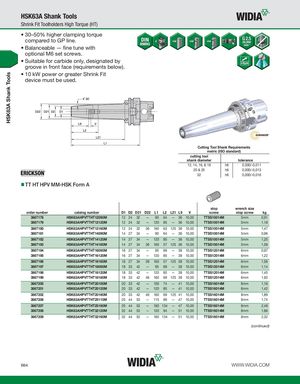

HSK63A Shank Tools HSK63A Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT HT HPV MM-HSK Form A stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3867178 HSK63AHPVTTHT12090M 12 24 32 — 90 64 — 36 10,00 TTSS10014M 5mm 0,91 3867179 HSK63AHPVTTHT12120M 12 24 32 — 120 85 — 36 10,00 TTSS10014M 5mm 1,18 3867180 HSK63AHPVTTHT12160M 12 24 32 36 160 63 125 36 10,00 TTSS10014M 5mm 1,47 3867181 HSK63AHPVTTHT14090M 14 27 34 — 90 64 — 36 10,00 TTSS10014M 5mm 0,96 3867182 HSK63AHPVTTHT14120M 14 27 34 — 120 85 — 36 10,00 TTSS10014M 5mm 1,25 3867193 HSK63AHPVTTHT14160M 14 27 34 36 160 57 125 36 10,00 TTSS10014M 5mm 1,58 3867194 HSK63AHPVTTHT16095M 16 27 34 — 95 69 — 39 10,00 TTSS12014M 6mm 0,97 3867195 HSK63AHPVTTHT16120M 16 27 34 — 120 85 — 39 10,00 TTSS12014M 6mm 1,22 3867196 HSK63AHPVTTHT16160M 16 27 34 39 160 57 125 39 10,00 TTSS12014M 6mm 1,56 3867197 HSK63AHPVTTHT18095M 18 33 42 — 95 69 — 39 10,00 TTSS12014M 6mm 1,14 3867198 HSK63AHPVTTHT18120M 18 33 42 — 120 85 — 39 10,00 TTSS12014M 6mm 1,45 3867199 HSK63AHPVTTHT18160M 18 33 42 46 160 69 125 39 10,00 TTSS12014M 6mm 1,92 3867200 HSK63AHPVTTHT20100M 20 33 42 — 100 74 — 41 10,00 TTSS16014M 8mm 1,16 3867201 HSK63AHPVTTHT20120M 20 33 42 — 120 85 — 41 10,00 TTSS16014M 8mm 1,42 3867202 HSK63AHPVTTHT20160M 20 33 42 46 160 69 125 41 10,00 TTSS16014M 8mm 1,89 3867206 HSK63AHPVTTHT25115M 25 44 53 — 115 89 — 47 10,00 TTSS16014M 8mm 1,74 3867207 HSK63AHPVTTHT25160M 25 44 53 — 160 134 — 47 10,00 TTSS16014M 8mm 2,49 3867208 HSK63AHPVTTHT32120M 32 44 53 — 120 94 — 51 10,00 TTSS16014M 8mm 1,66 3867209 HSK63AHPVTTHT32160M 32 44 53 — 160 134 — 51 10,00 TTSS16014M 8mm 2,32 (continued) B64 WWW.WIDIA.COM
