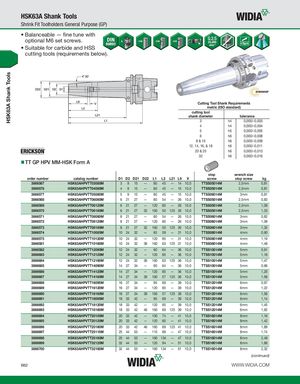

HSK63A Shank Tools HSK63A Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 3 h4 0,000/-0,003 4 h4 0,000/-0,004 5 h5 0,000/-0,005 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 TT GP HPV MM-HSK Form A stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3866567 HSK63AHPVTT03080M 3 9 15 — 80 45 — 14 10,0 TTSS05014M 2,5mm 0,81 3866576 HSK63AHPVTT04080M 4 9 15 — 80 45 — 15 10,0 TTSS05014M 2,5mm 0,81 3866577 HSK63AHPVTT05080M 5 9 15 — 80 45 — 15 10,0 TTSS06014M 3mm 0,81 3866568 HSK63AHPVTT06080M 6 21 27 — 80 54 — 26 10,0 TTSS05014M 2,5mm 0,83 3866569 HSK63AHPVTT06120M 6 21 27 — 120 85 — 26 10,0 TTSS05014M 2,5mm 1,09 3866570 HSK63AHPVTT06160M 6 21 27 32 160 50 125 26 10,0 TTSS05014M 2,5mm 1,33 3866571 HSK63AHPVTT08080M 8 21 27 — 80 54 — 26 10,0 TTSS06014M 3mm 0,82 3866572 HSK63AHPVTT08120M 8 21 27 — 120 85 — 26 10,0 TTSS06014M 3mm 1,09 3866573 HSK63AHPVTT08160M 8 21 27 32 160 50 125 26 10,0 TTSS06014M 3mm 1,32 3866574 HSK63AHPVTT10085M 10 24 32 — 85 59 — 31 10,0 TTSS08014M 4mm 0,90 3866575 HSK63AHPVTT10120M 10 24 32 — 120 85 — 31 10,0 TTSS08014M 4mm 1,19 3866581 HSK63AHPVTT10160M 10 24 32 36 160 63 125 31 10,0 TTSS08014M 4mm 1,48 3866582 HSK63AHPVTT12090M 12 24 32 — 90 64 — 36 10,0 TTSS10014M 5mm 0,91 3866683 HSK63AHPVTT12120M 12 24 32 — 120 85 — 36 10,0 TTSS10014M 5mm 1,18 3866684 HSK63AHPVTT12160M 12 24 32 36 160 63 125 36 10,0 TTSS10014M 5mm 1,47 3866685 HSK63AHPVTT14090M 14 27 34 — 90 64 — 36 10,0 TTSS10014M 5mm 0,96 3866686 HSK63AHPVTT14120M 14 27 34 — 120 85 — 36 10,0 TTSS10014M 5mm 1,25 3866687 HSK63AHPVTT14160M 14 27 34 39 160 57 125 36 10,0 TTSS10014M 5mm 1,58 3866688 HSK63AHPVTT16095M 16 27 34 — 95 69 — 39 10,0 TTSS12014M 6mm 0,97 3866689 HSK63AHPVTT16120M 16 27 34 — 120 85 — 39 10,0 TTSS12014M 6mm 1,22 3866690 HSK63AHPVTT16160M 16 27 34 39 160 57 125 39 10,0 TTSS12014M 6mm 1,56 3866691 HSK63AHPVTT18095M 18 33 42 — 95 69 — 39 10,0 TTSS12014M 6mm 1,14 3866692 HSK63AHPVTT18120M 18 33 42 — 120 85 — 39 10,0 TTSS12014M 6mm 1,45 3866693 HSK63AHPVTT18160M 18 33 42 46 160 69 125 39 10,0 TTSS12014M 6mm 1,92 3866694 HSK63AHPVTT20100M 20 33 42 — 100 74 — 41 10,0 TTSS16014M 8mm 1,16 3866695 HSK63AHPVTT20120M 20 33 42 — 120 85 — 41 10,0 TTSS16014M 8mm 1,42 3866696 HSK63AHPVTT20160M 20 33 42 46 160 69 125 41 10,0 TTSS16014M 8mm 1,89 3866697 HSK63AHPVTT25115M 25 44 53 — 115 89 — 47 10,0 TTSS16014M 8mm 1,74 3866698 HSK63AHPVTT25160M 25 44 53 — 160 134 — 47 10,0 TTSS16014M 8mm 2,49 3866699 HSK63AHPVTT32120M 32 44 53 — 120 94 — 51 10,0 TTSS16014M 8mm 1,66 3866700 HSK63AHPVTT32160M 32 44 53 — 160 134 — 51 10,0 TTSS16014M 8mm 2,32 (continued) B62 WWW.WIDIA.COM
