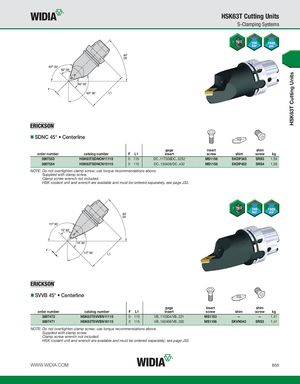

HSK63T Cutting Units HSK63T Cutting Units S-Clamping Systems SDNC 45° • Centerline gage insert shim order number catalog number F L1 insert screw shim screw kg 3897553 HSK63TSDNCN11115 0 115 DC..11T308DC..3252 MS1156 SKDP343 SRS3 1,59 3897554 HSK63TSDNCN15115 0 115 DC..150408/DC..432 MS1158 SKDP453 SRS4 1,59 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately, see page J32. SVVB 45° • Centerline gage insert shim order number catalog number F L1 insert screw shim screw kg 3897472 HSK63TSVVBN11115 0 115 VB..110304/VB..221 MS1153 — — 1,41 3897471 HSK63TSVVBN16115 0 115 VB..160408/VB..332 MS1156 SKVN343 SRS3 1,41 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B55
