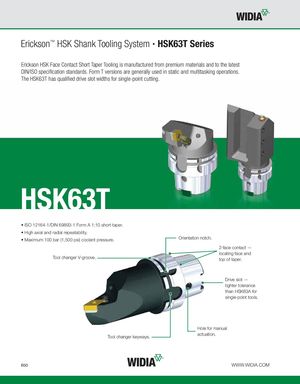

Erickson™ HSK Shank Tooling System • HSK63T Series Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest DIN/ISO specification standards. Form T versions are generally used in static and multitasking operations. The HSK63T has qualified drive slot widths for single-point cutting. HSK63T • ISO 12164-1/DIN 69893-1 Form A 1:10 short taper. • High axial and radial repeatability. • Maximum 100 bar (1,500 psi) coolant pressure. Orientation notch. 2-face contact — locating face and Tool changer V-groove. top of taper. Drive slot — tighter tolerance than HSK63A for single-point tools. Hole for manual Tool changer keyways. actuation. B50 WWW.WIDIA.COM
