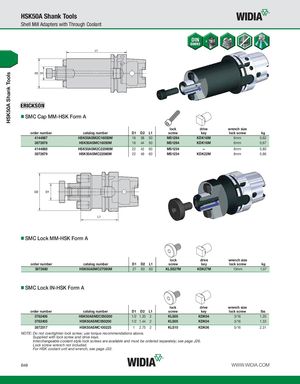

HSK50A Shank Tools HSK50A Shank Tools Shell Mill Adapters with Through Coolant SMC Cap MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 4144667 HSK50ASM2C16050M 16 38 50 MS1294 KDK16M 6mm 0,62 3872678 HSK50ASMC16050M 16 44 50 MS1294 KDK16M 6mm 0,67 4144668 HSK50ASM2C22060M 22 42 60 MS1234 — 8mm 0,80 3872679 HSK50ASMC22060M 22 49 60 MS1234 KDK22M 8mm 0,86 SMC Lock MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3872680 HSK50ASMC27060M 27 60 60 KLSS27M KDK27M 10mm 1,07 SMC Lock IN-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw lbs 3762406 HSK50ASM2C050200 1/2 1.20 2 KLS05 KDK04 3/16 1.20 3762405 HSK50ASMC050200 1/2 1.44 2 KLS05 KDK04 3/16 1.33 3872517 HSK50ASMC100225 1 2.75 2 KLS10 KDK06 5/16 2.31 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. B48 WWW.WIDIA.COM
