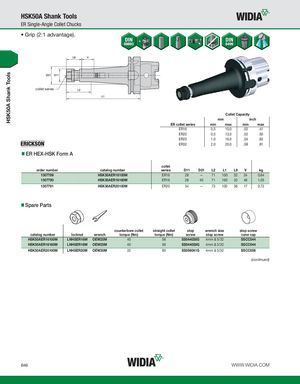

HSK50A Shank Tools HSK50A Shank Tools ER Single-Angle Collet Chucks • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER HEX-HSK Form A collet order number catalog number series D11 D21 L2 L1 L9 V kg 1307789 HSK50AER16100M ER16 28 — 71 100 32 24 0,64 1307790 HSK50AER16160M ER16 28 40 71 160 32 48 1,05 1307791 HSK50AER20100M ER20 34 — 73 100 36 17 0,72 Spare Parts counterbore collet straight collet stop wrench size stop screw catalog number locknut wrench torque (Nm) torque (Nm) screw stop screw cone cap HSK50AER16100M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 SSCC044 HSK50AER16160M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 SSCC044 HSK50AER20100M LNHSER20M OEW30M 32 80 SS056041G 4mm & 5/32 SSCC056 (continued) B46 WWW.WIDIA.COM
