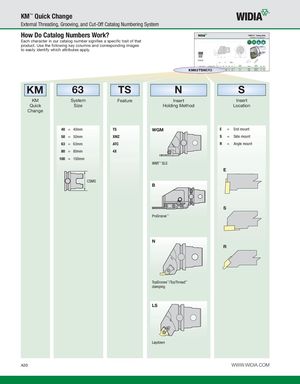

External Threading, Grooving, and Cut-Off Catalog Numbering System

How Do Catalog Numbers Work?

Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply.

KM63TSNER3

KM63TSNS
KMSystemFeatureInsertInsert
QuickSizeHolding MethodLocation

Change

40= 40mmTSWGME=End mount
50= 50mmXMZS=Side mount
63= 63mmATCR=Angle mount
80= 80mm4X

100 = 100mm WMT™ SLS E

CSMS B

S ProGroove™

N R

TopGroove™/TopThread™ clamping

LS

Laydown
