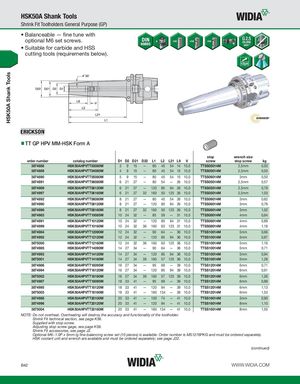

HSK50A Shank Tools HSK50A Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). TT GP HPV MM-HSK Form A stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V screw stop screw kg 3874888 HSK50AHPVTT03080M 3 9 15 — 80 45 54 14 10,0 TTSS05014M 2,5mm 0,50 3874889 HSK50AHPVTT04080M 4 9 15 — 80 45 54 15 10,0 TTSS05014M 2,5mm 0,50 3874890 HSK50AHPVTT05080M 5 9 15 — 80 45 54 15 10,0 TTSS06014M 3mm 0,50 3874891 HSK50AHPVTT06080M 6 21 27 — 80 54 — 26 10,0 TTSS05014M 2,5mm 0,57 3874989 HSK50AHPVTT06120M 6 21 27 — 120 85 94 26 10,0 TTSS05014M 2,5mm 0,79 3874997 HSK50AHPVTT06160M 6 21 27 32 160 50 125 26 10,0 TTSS05014M 2,5mm 1,03 3874892 HSK50AHPVTT08080M 8 21 27 — 80 45 54 26 10,0 TTSS06014M 3mm 0,62 3874990 HSK50AHPVTT08120M 8 21 27 — 120 85 94 26 10,0 TTSS06014M 3mm 0,78 3874998 HSK50AHPVTT08160M 8 21 27 32 160 50 125 26 10,0 TTSS06014M 3mm 1,02 3874983 HSK50AHPVTT10085M 10 24 32 — 85 59 — 31 10,0 TTSS08014M 4mm 0,64 3874991 HSK50AHPVTT10120M 10 24 32 — 120 85 94 31 10,0 TTSS08014M 4mm 0,89 3874999 HSK50AHPVTT10160M 10 24 32 36 160 63 125 31 10,0 TTSS08014M 4mm 1,18 3874984 HSK50AHPVTT12090M 12 24 32 — 90 64 — 36 10,0 TTSS10014M 5mm 0,66 3874992 HSK50AHPVTT12120M 12 24 32 — 120 85 94 36 10,0 TTSS10014M 5mm 0,87 3875000 HSK50AHPVTT12160M 12 24 32 36 160 63 125 36 10,0 TTSS10014M 5mm 1,16 3874985 HSK50AHPVTT14090M 14 27 34 — 90 64 — 36 10,0 TTSS10014M 5mm 0,71 3874993 HSK50AHPVTT14120M 14 27 34 — 120 85 94 36 10,0 TTSS10014M 5mm 0,94 3875001 HSK50AHPVTT14160M 14 27 34 39 160 57 125 36 10,0 TTSS10014M 5mm 1,28 3874986 HSK50AHPVTT16095M 16 27 34 — 95 69 — 39 10,0 TTSS12014M 6mm 0,71 3874994 HSK50AHPVTT16120M 16 27 34 — 120 85 94 39 10,0 TTSS12014M 6mm 0,91 3875002 HSK50AHPVTT16160M 16 27 34 39 160 57 125 39 10,0 TTSS12014M 6mm 1,26 3874987 HSK50AHPVTT18095M 18 33 41 — 95 69 — 39 10,0 TTSS12014M 6mm 0,88 3874995 HSK50AHPVTT18120M 18 33 41 — 120 94 — 39 10,0 TTSS12014M 6mm 1,13 3875003 HSK50AHPVTT18160M 18 33 41 — 160 134 — 39 10,0 TTSS12014M 6mm 1,53 3874988 HSK50AHPVTT20100M 20 33 41 — 100 74 — 41 10,0 TTSS16014M 3mm 0,90 3874996 HSK50AHPVTT20120M 20 33 41 — 120 94 — 41 10,0 TTSS16014M 8mm 1,10 3875004 HSK50AHPVTT20160M 20 33 41 — 160 134 — 41 10,0 TTSS16014M 8mm 1,50 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. Optional M6~1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page J32. (continued) B42 WWW.WIDIA.COM
