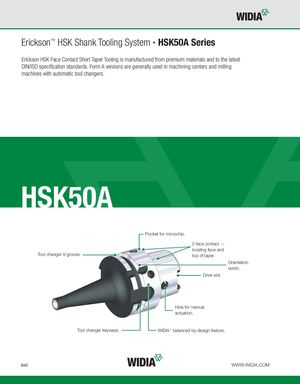

Erickson™ HSK Shank Tooling System • HSK50A Series Erickson HSK Face Contact Short Taper Tooling is manufactured from premium materials and to the latest DIN/ISO specification standards. Form A versions are generally used in machining centers and milling machines with automatic tool changers. HSK50A Pocket for microchip. 2-face contact — locating face and Tool changer V-groove. top of taper. Orientation notch. Drive slot. Hole for manual actuation. Tool changer keyways. WIDIA™ balanced-by-design feature. B40 WWW.WIDIA.COM
