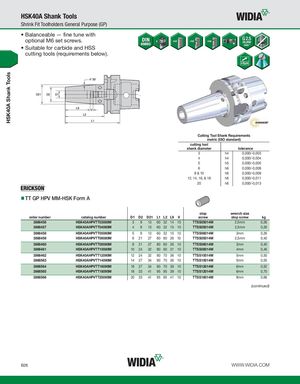

HSK40A Shank Tools HSK40A Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 3 h4 0,000/-0,003 4 h4 0,000/-0,004 5 h5 0,000/-0,005 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 h6 0,000/-0,013 TT GP HPV MM-HSK Form A stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3866456 HSK40AHPVTT03060M 3 9 13 60 32 14 10 TTSS05014M 2,5mm 0,26 3866457 HSK40AHPVTT04060M 4 9 13 60 32 15 10 TTSS05014M 2,5mm 0,26 3866458 HSK40AHPVTT05060M 5 9 13 60 32 15 10 TTSS06014M 3mm 0,26 3866459 HSK40AHPVTT06080M 6 21 27 80 60 26 10 TTSS05014M 2,5mm 0,40 3866460 HSK40AHPVTT08080M 8 21 27 80 60 26 10 TTSS06014M 3mm 0,40 3866461 HSK40AHPVTT10080M 10 24 32 80 60 31 10 TTSS08014M 4mm 0,46 3866462 HSK40AHPVTT12090M 12 24 32 90 70 36 10 TTSS10014M 5mm 0,50 3866563 HSK40AHPVTT14090M 14 27 34 90 70 36 10 TTSS10014M 5mm 0,55 3866564 HSK40AHPVTT16090M 16 27 34 90 70 39 10 TTSS12014M 6mm 0,52 3866565 HSK40AHPVTT18095M 18 33 41 95 95 39 10 TTSS12014M 6mm 0,70 3866566 HSK40AHPVTT20095M 20 33 41 95 95 41 10 TTSS16014M 8mm 0,66 (continued) B26 WWW.WIDIA.COM
