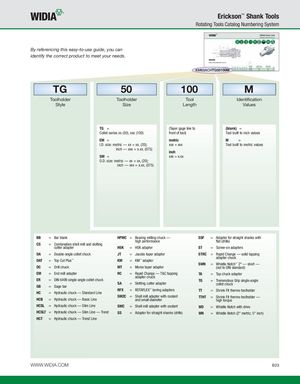

Erickson™ Shank Tools Rotating Tools Catalog Numbering System By referencing this easy-to-use guide, you can identify the correct product to meet your needs. KM63ACHTG50100M TG 50 100 M Toolholder Toolholder Tool Identification Style Size Length Values TG = (Taper gage line to (blank) = Collet series xx (50), xxx (100) front of tool) Tool built to inch values EM = metric M = I.D. size: metric — xx = xx, (20); xxx = xxx Tool built to metric values inch — xxx = x.xx, (075) inch SM = xxx = x.xx O.D. size: metric — xx = xx, (20); inch — xxx = x.xx, (075) BB = Bar blank HPMC = Bearing milling chuck — SSF = Adapter for straight shanks with high performance flat (drills) CS = Combination shell mill and slotting cutter adapter HSK = HSK adapter ST = Screw-on adapters DA = Double-angle collet chuck JT = Jacobs taper adapter STRC = Rapid Change — solid tapping adapter chuck DAT = Top Cut Plus™ KM = KM™ adapter SWN = Whistle Notch™ 2° — short — DC = Drill chuck MT = Morse taper adapter (not to DIN standard) EM = End mill adapter RC = Rapid Change — T&C tapping TA = Tap chuck adapter adapter chuck ER = DIN 6499 single-angle collet chuck TG = Tremendous Grip single-angle GB = Gage bar SA = Slotting cutter adapter collet chuck RFX = ROTAFLEX™ boring adaptersHC=Hydraulic chuck — Standard LineTT=Shrink Fit thermo toolholder HCB = Hydraulic chuck — Basic Line SM2C = Shell mill adapter with coolantand small diameterTTHT=Shrink Fit thermo toolholder —high torque HCSL = Hydraulic chuck — Slim Line SMC = Shell mill adapter with coolant WD = Whistle Notch with drive HCSLT = Hydraulic chuck — Slim Line — Trend SS = Adapter for straight shanks (drills) WN = Whistle Notch (2° metric; 5° inch) HCT = Hydraulic chuck — Trend Line WWW.WIDIA.COM B23
