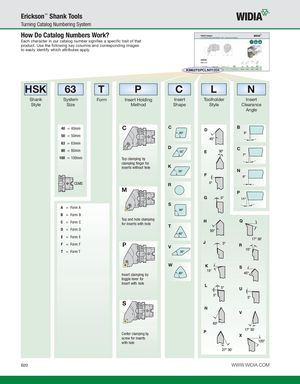

Erickson™ Shank Tools Turning Catalog Numbering System How Do Catalog Numbers Work? Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. KM63TSPCLNR1204 HSK 63 T P C L N Shank System Form Insert Holding Insert Toolholder Insert Style Size Method Shape Style Clearance Angle 40 = 40mm C C B 50 = 50mm 63 = 63mm 80 = 80mm D C 100 = 100mm Top clamping by clamping finger for inserts without hole K N CSMS R M P S A = Form A B = Form B Top and hole clamping C = Form C for inserts with hole T D = Form D E = Form E F = Form F P V T = Form T W Insert clamping by toggle lever for insert with hole S Center clamping by screw for inserts with hole B20 WWW.WIDIA.COM
