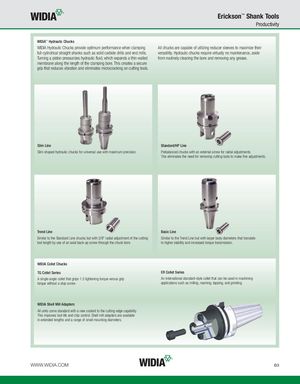

Erickson™ Shank Tools Productivity WIDIA™ Hydraulic Chucks WIDIA Hydraulic Chucks provide optimum performance when clamping All chucks are capable of utilizing reducer sleeves to maximize their full-cylindrical straight shanks such as solid carbide drills and end mills. versatility. Hydraulic chucks require virtually no maintenance, aside Turning a piston pressurizes hydraulic fluid, which expands a thin-walled from routinely cleaning the bore and removing any grease. membrane along the length of the clamping bore. This creates a secure grip that reduces vibration and eliminates microcracking on cutting tools. Slim Line Standard/HP Line Slim-shaped hydraulic chucks for universal use with maximum precision. Prebalanced chucks with an external screw for radial adjustments. This eliminates the need for removing cutting tools to make fine adjustments. Trend Line Basic Line Similar to the Standard Line chucks but with 3/8" radial adjustment of the cutting Similar to the Trend Line but with larger body diameters that translate tool length by use of an axial back-up screw through the chuck bore. to higher stability and increased torque transmission. WIDIA Collet Chucks TG Collet Series ER Collet Series A single-angle collet that grips 1:3 tightening torque versus grip An international standard-style collet that can be used in machining torque without a stop screw. applications such as milling, reaming, tapping, and grinding. WIDIA Shell Mill Adapters All units come standard with a new coolant to the cutting edge capability. This improves tool life and chip control. Shell mill adapters are available in extended lengths and a range of small mounting diameters. WWW.WIDIA.COM B3
