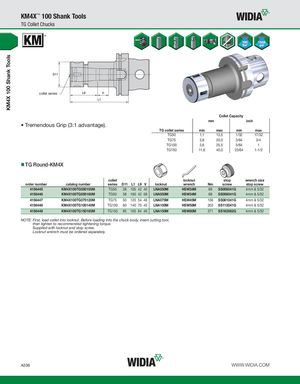

KM4X 100 Shank Tools KM4X™ 100 Shank Tools TG Collet Chucks collet series Collet Capacity mm inch • Tremendous Grip (3:1 advantage). TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1-1/2 TG Round-KM4X collet locknut stop wrench size order number catalog number series D11 L1 L9 V locknut wrench Nm screw stop screw 4156445 KM4X100TG050105M TG50 38 105 42 40 LNA050M HSW34M 68 SS056041G 4mm & 5/32 4156446 KM4X100TG050160M TG50 38 160 42 58 LNA050M HSW34M 68 SS056041G 4mm & 5/32 4156447 KM4X100TG075120M TG75 50 120 54 46 LNA075M HSW45M 136 SS081041G 4mm & 5/32 4156448 KM4X100TG100140M TG100 60 140 70 45 LNA100M HSW58M 203 SS112041G 4mm & 5/32 4156449 KM4X100TG150165M TG150 85 165 84 46 LNA150M HSW80M 271 SS162062G 4mm & 5/32 NOTE: First, load collet into locknut. Before loading into the chuck body, insert cutting tool, then tighten to recommended tightening torque. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. A336 WWW.WIDIA.COM
