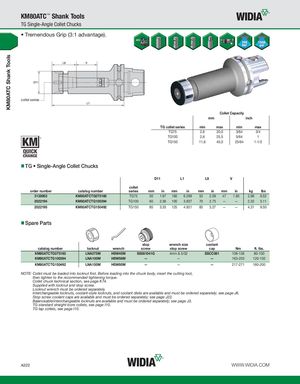

KM80ATC Shank Tools KM80ATC™ Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 TG150 11,6 40,0 23/64 1-1/2 TG • Single-Angle Collet Chucks D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 3138953 KM80ATCTG075160 TG75 50 1.97 160 6.299 53 2.09 47 1.85 2,96 6.52 2022194 KM80ATCTG100394 TG100 60 2.36 100 3.937 70 2.75 — — 2,32 5.11 2022195 KM80ATCTG150492 TG150 85 3.35 125 4.921 83 3.27 — — 4,31 9.50 Spare Parts stop wrench size coolant catalog number locknut wrench screw stop screw cap Nm ft. lbs. KM80ATCTG075160 LNA075M HSW45M SS081041G 4mm & 5/32 SSCC081 108-136 80-100 KM80ATCTG100394 LNA100M HSW58M — — — 163-203 120-150 KM80ATCTG150492 LNA150M HSW80M — — — 217-271 160-200 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. A322 WWW.WIDIA.COM
