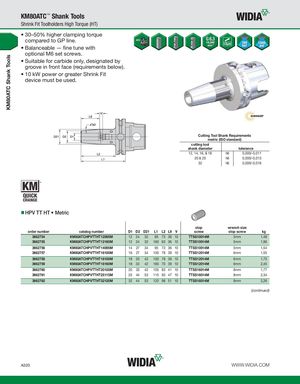

KM80ATC Shank Tools KM80ATC™ Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 HPV TT HT • Metric stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3662754 KM80ATCHPVTTHT12095M 12 24 32 95 73 36 10 TTSS10014M 5mm 1,48 3662755 KM80ATCHPVTTHT12160M 12 24 32 160 63 36 10 TTSS10014M 5mm 1,96 3662756 KM80ATCHPVTTHT14095M 14 27 34 95 73 36 10 TTSS10014M 5mm 1,54 3662757 KM80ATCHPVTTHT16100M 16 27 34 100 78 39 10 TTSS12014M 6mm 1,55 3662758 KM80ATCHPVTTHT18100M 18 33 42 100 78 39 10 TTSS12014M 6mm 1,75 3662759 KM80ATCHPVTTHT18160M 18 33 42 160 70 39 10 TTSS12014M 6mm 2,45 3662760 KM80ATCHPVTTHT20105M 20 33 42 105 83 41 10 TTSS16014M 8mm 1,77 3662761 KM80ATCHPVTTHT25115M 25 44 53 115 93 47 10 TTSS16014M 8mm 2,34 3662762 KM80ATCHPVTTHT32120M 32 44 53 120 98 51 10 TTSS16014M 8mm 2,26 (continued) A320 WWW.WIDIA.COM
