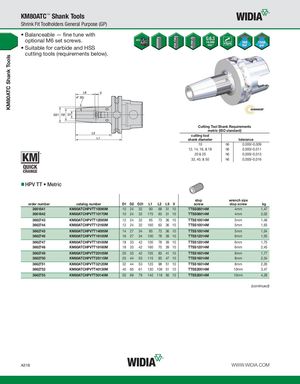

KM80ATC Shank Tools KM80ATC™ Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 HPV TT • Metric stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3661841 KM80ATCHPVTT10090M 10 24 32 90 68 31 10 TTSS08014M 4mm 1,47 3661842 KM80ATCHPVTT10170M 10 24 32 170 63 31 10 TTSS08014M 4mm 2,02 3662743 KM80ATCHPVTT12095M 12 24 32 95 73 36 10 TTSS10014M 5mm 1,48 3662744 KM80ATCHPVTT12160M 12 24 32 160 63 36 10 TTSS10014M 5mm 1,93 3662745 KM80ATCHPVTT14095M 14 27 34 95 73 36 10 TTSS10014M 5mm 1,54 3662746 KM80ATCHPVTT16100M 16 27 34 100 78 39 10 TTSS12014M 6mm 1,55 3662747 KM80ATCHPVTT18100M 18 33 42 100 78 39 10 TTSS12014M 6mm 1,75 3662748 KM80ATCHPVTT18160M 18 33 42 160 70 39 10 TTSS12014M 6mm 2,45 3662749 KM80ATCHPVTT20105M 20 33 42 105 83 41 10 TTSS16014M 8mm 1,77 3662750 KM80ATCHPVTT25115M 25 44 53 115 93 47 10 TTSS16014M 8mm 2,34 3662751 KM80ATCHPVTT32120M 32 44 53 120 98 51 10 TTSS16014M 8mm 2,26 3662752 KM80ATCHPVTT40130M 40 60 61 130 108 51 10 TTSS20014M 10mm 3,47 3662753 KM80ATCHPVTT50140M 50 69 79 140 118 56 10 TTSS20014M 10mm 4,28 (continued) A318 WWW.WIDIA.COM
