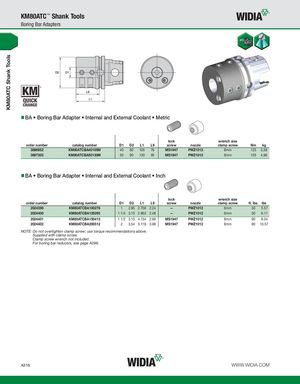

KM80ATC Shank Tools KM80ATC™ Shank Tools Boring Bar Adapters BA • Boring Bar Adapter • Internal and External Coolant • Metric lock wrench size order number catalog number D1 D2 L1 L9 screw nozzle clamp screw Nm kg 3896952 KM80ATCBA40105M 40 80 105 76 MS1947 PWZ1012 8mm 125 3,58 3897203 KM80ATCBA50130M 50 90 130 95 MS1947 PWZ1012 8mm 125 4,96 BA • Boring Bar Adapter • Internal and External Coolant • Inch lock wrench size order number catalog number D1 D2 L1 L9 screw nozzle clamp screw ft. lbs. lbs 2024399 KM80ATCBA100276 1 2.95 2.756 2.24 — PWZ1012 6mm 30 5.57 2024400 KM80ATCBA125295 1 1/4 3.15 2.953 2.48 — PWZ1012 6mm 30 6.11 2024401 KM80ATCBA150413 1 1/2 3.15 4.134 2.99 MS1947 PWZ1012 8mm 90 8.04 2024402 KM80ATCBA200512 2 3.54 5.118 3.98 MS1947 PWZ1012 8mm 90 10.57 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. For boring bar reducers, see page A286. A316 WWW.WIDIA.COM
