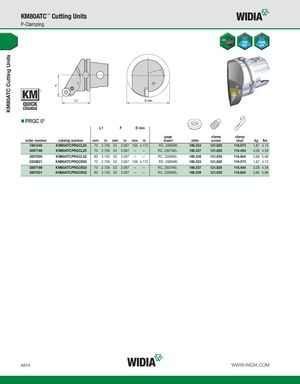

KM80ATC Cutting Units KM80ATC™ Cutting Units P-Clamping PRGC 0° L1 F D min gage clamp clamp order number catalog number mm in mm in mm in insert shim screw stud kg lbs 1961340 KM80ATCPRGCL20 70 2.756 53 2.087 106 4.173 RC..2006M0 169.333 121.820 119.073 1,87 4.12 3897198 KM80ATCPRGCL25 70 2.756 53 2.087 — — RC..2507M0.. 169.337 121.820 118.404 2,08 4.58 3897200 KM80ATCPRGCL32 80 3.150 53 2.087 — — RC..3209M0.. 169.339 121.030 118.604 2,66 5.86 2203621 KM80ATCPRGCR20 70 2.756 53 2.087 106 4.173 RC..2006M0 169.333 121.820 119.073 1,87 4.12 3897199 KM80ATCPRGCR25 70 2.756 53 2.087 — — RC..2507M0.. 169.337 121.820 118.404 2,08 4.58 3897201 KM80ATCPRGCR32 80 3.150 53 2.087 — — RC..3209M0.. 169.339 121.030 118.604 2,66 5.86 A314 WWW.WIDIA.COM
